Pinch Rolls

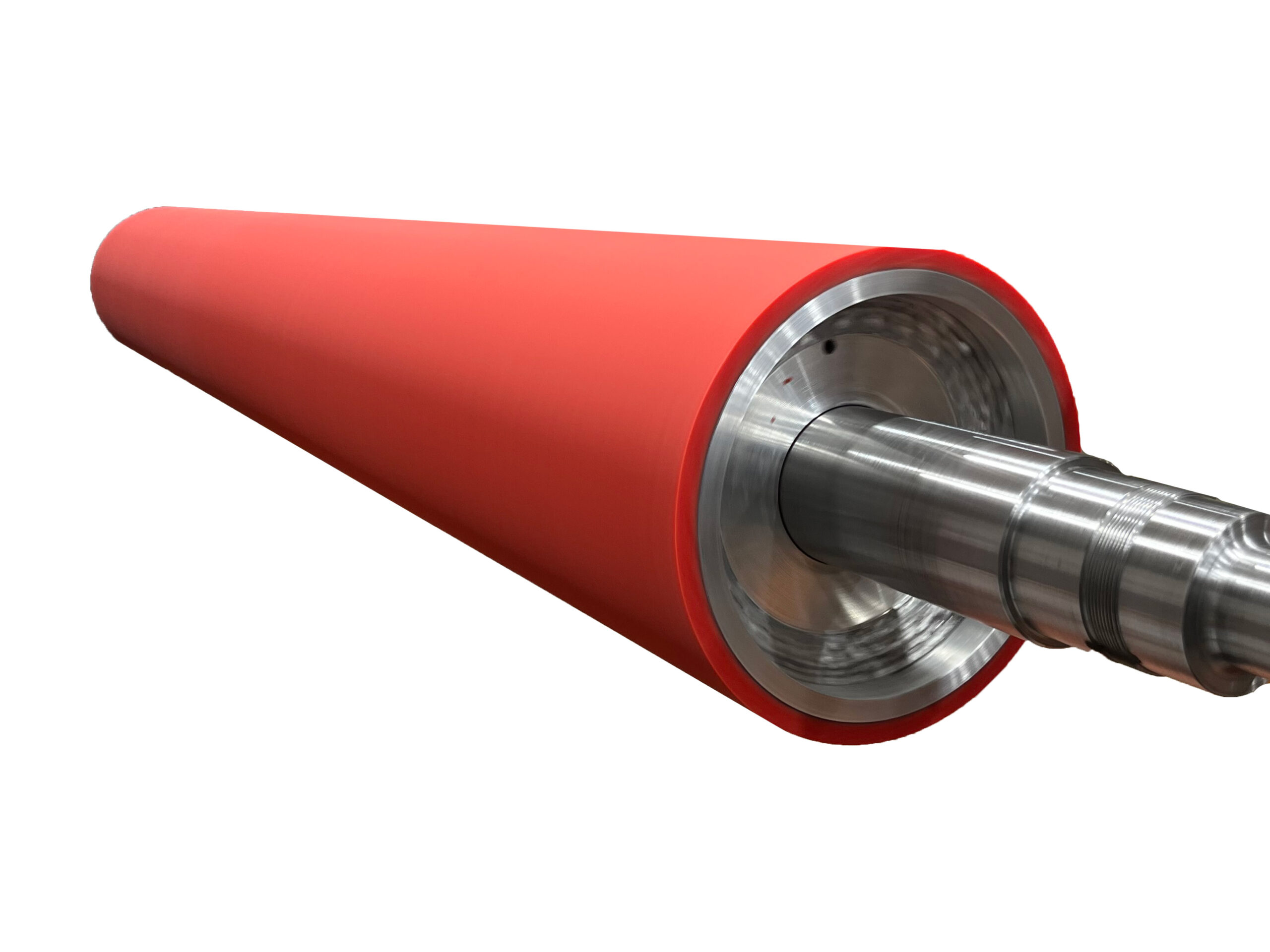

Urethane Pinch Rolls
Universal Urethane manufactures urethane pinch rolls engineered to deliver the traction and surface protection required for coil processing lines. Operating as the driven element to feed strip into production, our urethane-covered pinch rolls provide stable grip, non-marring contact, and long service life under repeated start/stop and continuous load conditions.
Core Construction
The ability of a pinch roll to apply consistent nip pressure begins with its core. Universal Urethane designs and refurbishes pinch roll cores to withstand the heavy loads of strip feeding.
- Core Materials: Steel, stainless steel, or aluminum, manufactured in solid or tubing construction.
- Precision Machining: Journals and bearing seats produced or restored to print for proper fit and alignment.
- Journal & Shaft Services: Shaft replacement, weld repair, and press-fit services extend core life.
- Dynamic Balancing: Balanced after machining and recovering for vibration-free operation and even nip pressure.
- Complete Assemblies: Supplied ready to install with shafts, bearings, couplings, and urethane coverings.
Urethane Covering
The urethane covering provides the traction necessary to pull strip while protecting sensitive finishes.
- Durometer Range: Custom polyurethane hardness, typically 85–95 Shore A for grip and durability.
- Surface Finish: Smooth ground for non-marking contact, or textured finishes for improved grip in oily or wet conditions.
- Grooved Options: Diamond, helix, herringbone, spiral, chevron, checkerboard razor slots, and crepe patterns available.
- Performance Properties: High abrasion resistance, impact absorption, and non-marring contact under repeated nip cycles.
- Bonding & Cure: Covers applied to grit-blasted cores with primer adhesives and heat curing for maximum adhesion and long-term performance.
Performance in Coil Processing
Pinch rolls serve as critical traction elements within coil lines. Universal Urethane pinch rolls are designed to:
- Feed and guide strip reliably into downstream operations.
- Deliver consistent grip under high nip pressure without slippage.
- Protect coated or polished surfaces from scratches or dents.
- Resist wear from continuous use and start/stop operation.
Maintenance & Recovering Services
Universal Urethane provides full-service recovery to extend pinch roll life and minimize downtime.
- Recovering: Old covers stripped, cores inspected and refurbished, and new urethane applied to OEM or upgraded specifications.
- Rebuild Process: Complete cleaning, inspection, grinding, balancing, and finishing performed to print.
- Service Options: Standard and expedited turnaround available with pickup and delivery.
Applications
- Coil entry stations
- Galvanizing and coating lines
- Tension leveling and cleaning lines
- General strip feeding and guiding

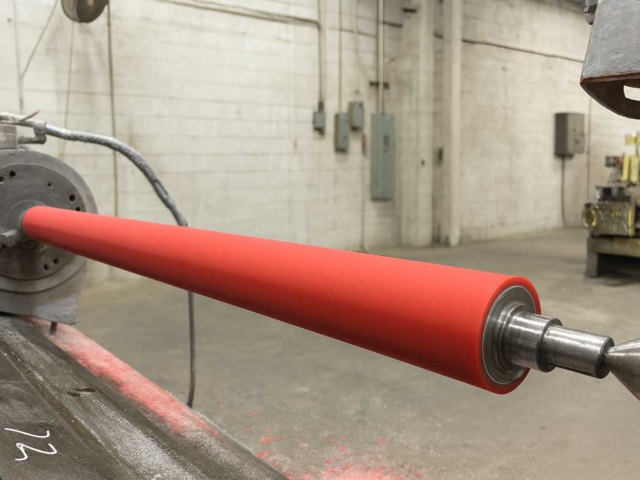

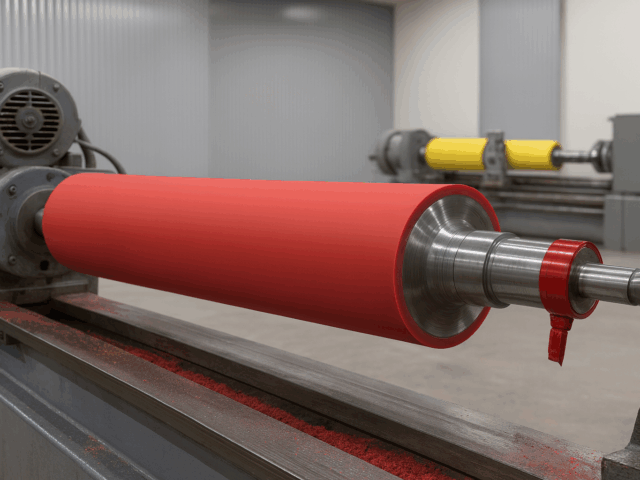

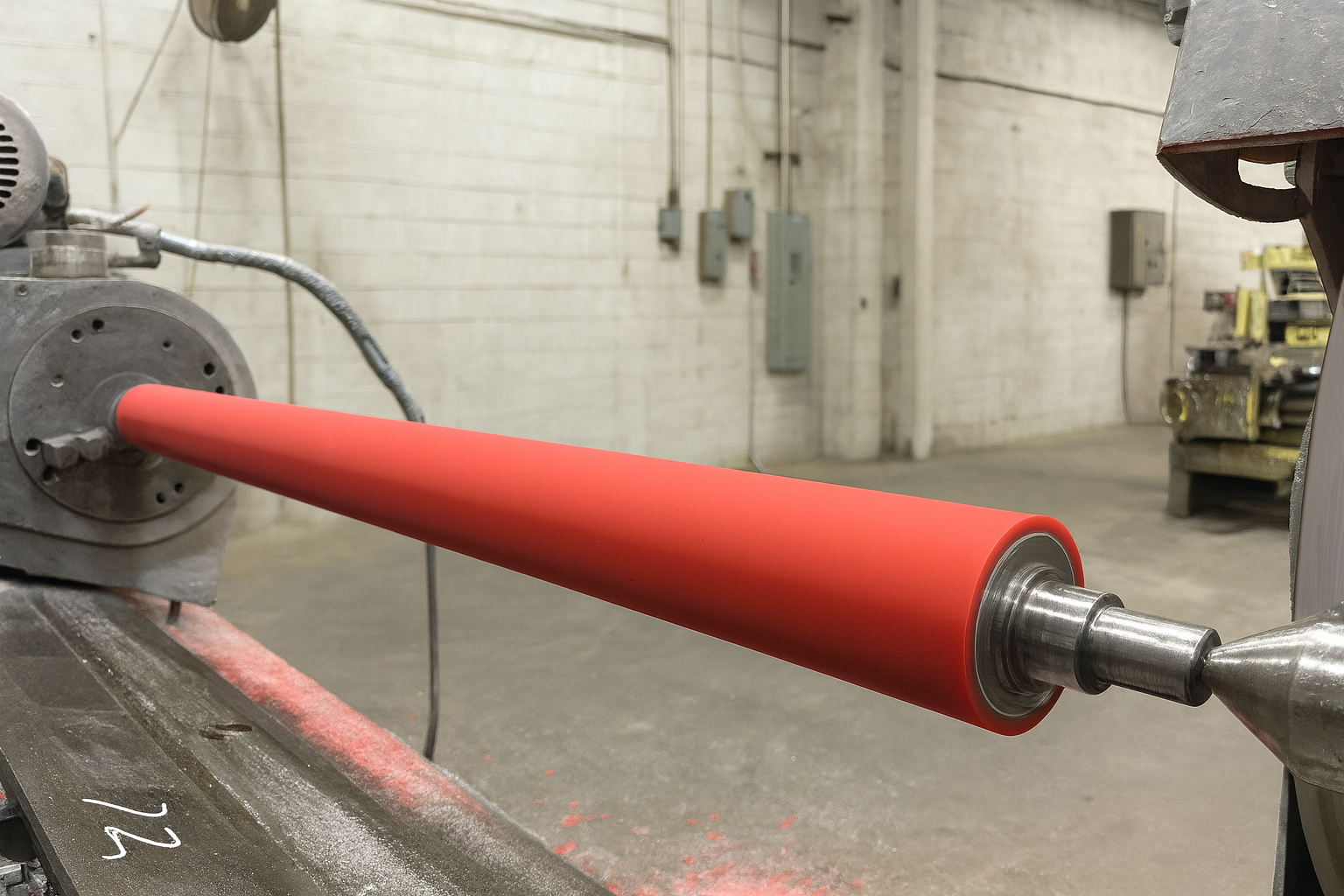

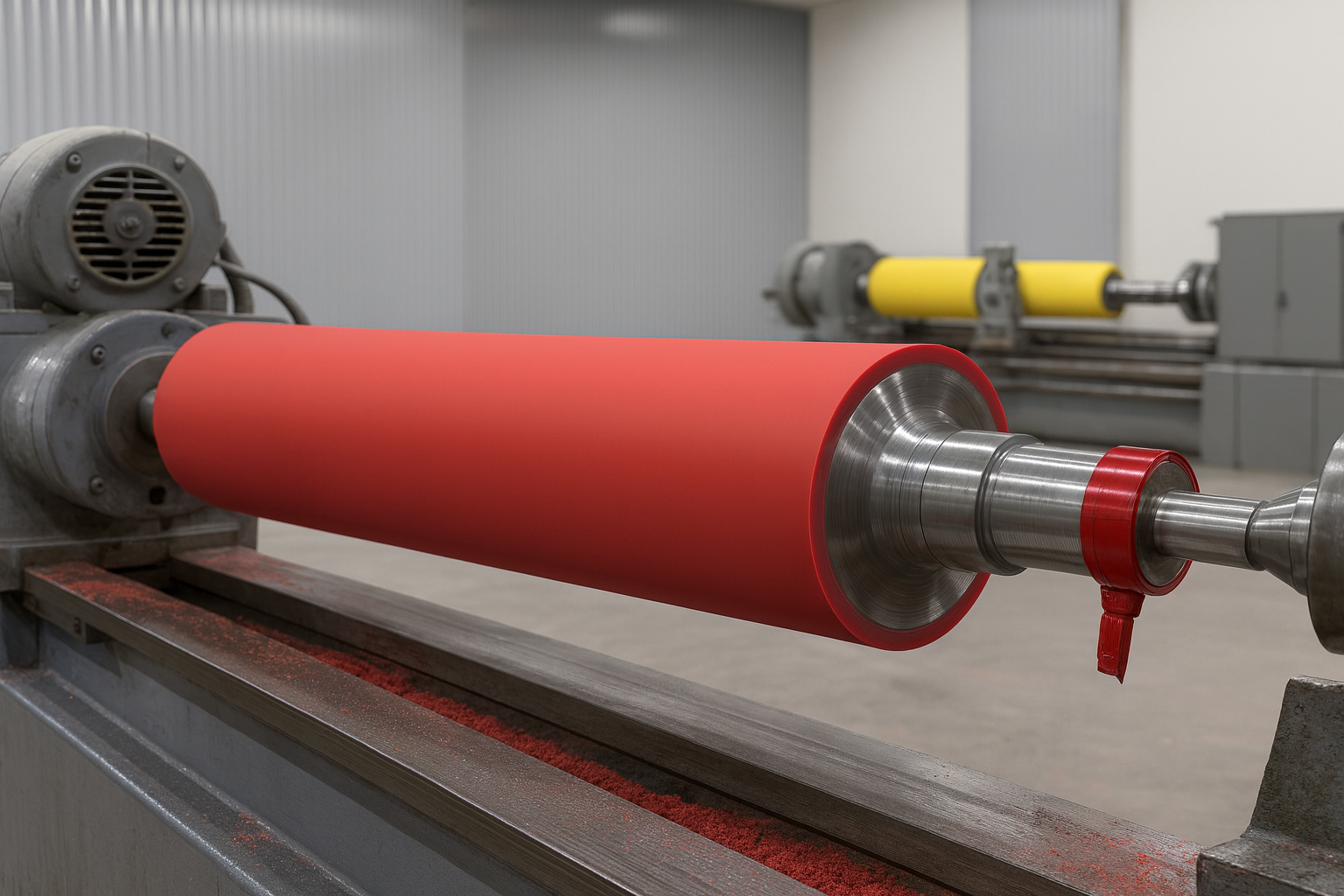

Image gallery
Contact
Contact our engineering team to specify new pinch rolls or to arrange a recover service. We’ll ensure your rolls meet the exact tolerances and performance standards your line demands.
